A quotation that says “squeeze bending” does not tell you whether the machine uses compression bending, hydraulic rotary-draw bending, or a cylinder-driven clamp and bend arrangement. You will be able to identify the actual forming method, match hydraulic capacity to your tube and cycle, and compare Pune suppliers using measurable bend, safety, and production criteria.
Key takeaways
- Match tube diameter, wall thickness, material, and bend radius before selecting equipment.
- Size the hydraulic power pack for peak force, cycle speed, and production duty.
- Choose standalone or integrated hydraulics based on control, maintenance, and layout needs.
- Require a witnessed trial with measured bend accuracy, cycle time, and surface quality.
How squeeze bending forms a tube and where it fits among bending methods
Squeeze bending forms a tube by driving it against a shaped bend die. A clamp die holds the straight tube, while the bend die establishes the centre-line radius; a pressure die or hydraulic cylinder pushes the tube into the die as it rotates or slides through the forming zone.
A mandrel supports the bore, and a wiper die controls wrinkles at the tangent on tight-radius or thin-wall bends.
- Load and align the tube against the tooling datum.
- Clamp it firmly without crushing or marking the surface.
- Lubricate the tube, mandrel, and contact surfaces.
- Apply pressure while the tube advances or rotates through the bend.
- Complete the bend, then release pressure and unload the part.
- Correct springback through calibrated overbend or angle compensation.
- Inspect angle, centre-line radius, ovality, wrinkles, cracks, and wall thinning.
| Method | Strength | Best fit |
|---|---|---|
| Compression or squeeze | Simple tooling and quick setup | Short runs, simpler bends, less demanding appearance |
| Rotary-draw | Precise tooling and mandrel control | Tight radii, thin walls, repeatable high-volume parts |
| Roll | Gradual forming over several rolls | Large radii, long sweeps, frames |
| Press | Direct force with local deformation | Heavy-wall tubes, large radii, lower-volume work |
“Tube squeeze bending machine” is not a universal process name. For tube bending hydraulic power unit quotations, including tube bending hydraulic power unit applications in Pune, require a process sketch, tooling layout, bend-radius definition, and maximum tube specification.
Compare outside diameter, wall thickness, material grade, bend angle, straight-leg length, ovality limit, and allowable wall thinning—not maximum diameter alone.
Match Pune applications and tube specifications before choosing the machine
A machine suits the component only when its tooling and controls match the tube, not when its advertised maximum diameter looks impressive. Map tube squeeze bending machine applications in Pune against the actual part family first.
| Application | Typical requirement | Machine emphasis |
|---|---|---|
| Exhaust and intake tubing | Thin wall, appearance, tight bends | Mandrel, wiper, lubrication, marking control |
| Chassis and structural tubes | Larger radii, high force | Strong clamp, longer stroke, rigid pressure die |
| Hydraulic and pneumatic lines | Pressure integrity, low ovality | Wall-thickness control and crack-free forming |
| Machine guards and fabricated frames | Repeatable angles and fit-up | Simple tooling with adequate force |
| Heat-exchanger components | Thin wall, multiple accurate bends | Mandrel extraction and programmable correction |
Record outside diameter, wall thickness, material grade, bend centre-line radius, bend angle, straight-leg length, allowable wall thinning, and outside-diameter ovality limit. Thin-wall stainless or coated parts need adjustable clamping, controlled lubrication, wiper support, mandrel extraction, and surfaces protected from die marks. Generous-radius structural tubes need less tooling complexity but greater force and stroke.
Write acceptance limits into the drawing and purchase specification:
- Minimum wall thickness: at least the drawing value; state the permitted percentage thinning.
- Ovality: maximum outside-diameter deviation stated as a percentage or millimetre value.
- Wrinkles and cracks: zero, unless a defined wrinkle depth is explicitly approved.
- End flare: maximum outside diameter after bending.
- Bend angle and centre-line radius: separate numerical tolerances.
Relate each limit to material strength, pressure duty, and downstream fit. Include calibrated overbend or programmable angle correction: yield strength, work hardening, wall thickness, diameter, and radius change springback. Industrial tube forming equipment in Pune cannot be judged by tonnage alone; tooling clearance, unsupported length, mandrel condition, and pressure-die control determine bend quality.
Size the hydraulic power pack for force, speed, and repeated production

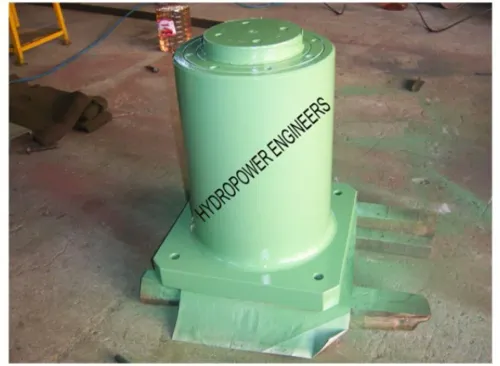

Size the hydraulic power pack for tube bending from force, speed, and cycle time—not motor horsepower alone. Estimate cylinder force as pressure multiplied by effective piston area, while cylinder speed equals supplied flow divided by effective area. On the rod side, use the smaller annular area for return-speed calculations.
The ideal hydraulic power formula is P(kW) = pressure(bar) × flow(L/min) ÷ 600. Select the motor after allowing for pump, motor, valve, and mechanical losses; repeated high-pressure strokes need additional margin.
Compare these specifications before approving a hydraulic power pack for tube bending:

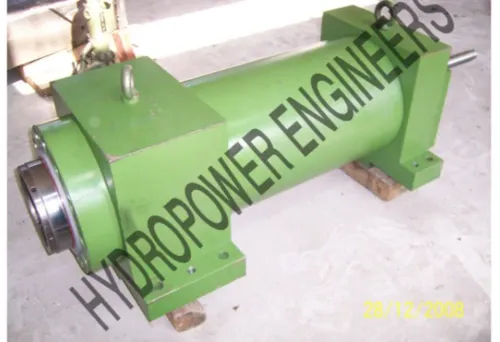

| Item | Specify | Why it matters |
|---|---|---|
| Working pressure | Continuous pressure at the required flow | Sets usable forming force |
| Peak pressure | Short-duration maximum and duration | Prevents confusing overload capacity with production capacity |
| Pump displacement | cm³/revolution and rated speed | Determines flow and motor demand |
| Flow | L/min at forming pressure | Controls bend time |
| Cylinder | Bore, rod diameter, stroke, and return speed | Determines force, stability, and cycle time |
| Relief valve | Setting, flow capacity, and bypass condition | Limits pressure without excessive heating |
| Motor | Rating in kW and starting method | Covers real losses, not ideal power alone |
A high-pressure pump with inadequate flow can reach force too slowly and miss the target cycle. Specify duty cycle, reservoir volume, filtration rating, valve functions, cooling method, and permissible oil temperature.
Check heat rejection at the actual cycle rate. Flow bypassing through a relief valve during dwell or return turns input power into heat; a larger tank cannot correct an undersized pump, relief circuit, or cooler.
Hydraulic power supplies force, not bend quality. Tube strength, tooling, mandrel support, bend radius, and springback control determine the result, so require calculations tied to the buyer’s tube, force, stroke, and target cycle.
Choose between a standalone power unit and an integrated hydraulic circuit
Choose a standalone tube bending hydraulic power unit when you need to replace, relocate, isolate, or service the hydraulics without dismantling the forming machine. A packaged hydraulic power pack for tube bending also makes the pump, motor, reservoir, valves, filtration, cooling, and instrumentation easy to identify.
| Option | Main advantage | Installation trade-off |
|---|---|---|
| Standalone unit | Replaceable and serviceable package | Hoses, connection points, floor space, and operator-side noise |
| Integrated circuit | Less external plumbing and smaller footprint | Fault tracing crosses valves, sensors, software, and cylinders |
| Standalone unit | Clear hydraulic troubleshooting boundary | Pump noise and heat remain near the machine if poorly located |
| Integrated circuit | One control system coordinates clamping, pressure-die movement, mandrel extraction, and bend timing | A compact manifold can conceal leakage or sensor faults |
For industrial tube forming equipment in Pune, choose the integrated circuit when floor space and coordinated timing matter more than rapid hydraulic replacement. Choose the standalone arrangement when production uptime depends on accessible service and a separate hydraulic fault boundary.
Specify pressure gauges or transducers on clamping, pressure-die, and mandrel circuits. Provide accessible filters, oil-sampling points, guarding, hose protection, and a lockable maintenance isolation point.
Under ISO 4413, control excessive pressure, unexpected movement, stored energy, hose failure, fluid injection, and safe depressurisation. Do not use a directional valve alone to hold a vertical or spring-loaded axis.
- Use a counterbalance valve, pilot-operated check valve, or equivalent engineered holding arrangement.
- Assess emergency stop, guard interlock, unexpected-restart prevention, and stored-energy control under ISO 12100 and ISO 13849-1.
- Check whether pump heat and noise reach the die area.
Use a witnessed trial and a measurable supplier comparison before purchase
Do not approve a machine from its maximum diameter alone. For tube squeeze bending machine hydraulic power for applications in Pune, request these figures and compare them with every part family:
- Maximum tube outside diameter, supported wall-thickness range, material-grade limits, cylinder force, cylinder stroke, forming speed, return speed, tooling range, angle repeatability, and required floor space.
| Supplier claim | What to verify | Why it matters |
|---|---|---|
| Maximum diameter | Each production tube, not only the largest | A machine can accept diameter but fail thin-wall or high-strength parts |
| Hydraulic rating | Pressure, flow, force, speed, and cycle time together | High pressure with inadequate flow forms too slowly |
| Precision claim | Measured angle and centre-line-radius results | Springback changes with grade, wall, diameter, and radius |
Demand a witnessed trial using your tube grade, wall thickness, lubricant, tooling, target bend radius, bend angle, straight-leg length, and production cycle time. Inspect first-off and repeated parts for outside-diameter ovality, minimum wall thickness, wrinkles, cracks, end flare, bend angle, and centre-line-radius accuracy; set numerical limits from your drawing, material, pressure duty, and downstream fit.
Record forming and return pressure, flow, motor rating, relief setting, oil temperature, cycle time, and recovery between cycles. Require drawings for the mandrel, wiper, clamp, pressure, and bend tooling, plus the maintenance schedule and spare-parts list.
For tube squeeze bending machine applications in Pune, Hydropower Engineers can convert your geometry and cycle requirement into a hydraulic and tooling specification. Judge the proposal by witnessed results and calculations, not “squeeze.” Include guarding, emergency stop, isolation, hose protection, and safe depressurisation in the acceptance checklist for industrial tube forming equipment in Pune.
Frequently asked questions
How does squeeze bending differ from other tube-bending methods?
Squeeze bending drives a tube against a shaped bend die while a clamp die holds it and a pressure die or hydraulic cylinder provides forming force. Compare it with rotary draw, roll, press, and mandrel bending based on bend radius, wall-thinning limits, tooling, and production volume.
Which tube specifications should you confirm for Pune applications?
Confirm tube outside diameter, wall thickness, material grade, yield strength, length, bend centre-line radius, bend angle, tolerance, surface-finish limits, and required production rate before choosing the machine.
How do you size a hydraulic power pack for tube bending?
Calculate required forming force from tube material, diameter, wall thickness, bend radius, and tooling friction. Then specify cylinder bore, operating pressure, flow rate, reservoir capacity, motor rating, cycle time, and duty cycle with a margin for repeated production.
Should you choose a standalone hydraulic power unit or an integrated circuit?
Choose a standalone power unit when several machines share hydraulics or service access matters. Choose an integrated circuit when the machine needs compact plumbing, coordinated valve control, and a factory-matched hydraulic sequence.
What should a witnessed tube-bending trial measure?
Measure bend angle, centre-line radius, ovality, wall thinning, wrinkles, springback, surface marks, cycle time, repeatability, oil temperature, and energy use on your actual tube and tooling.
